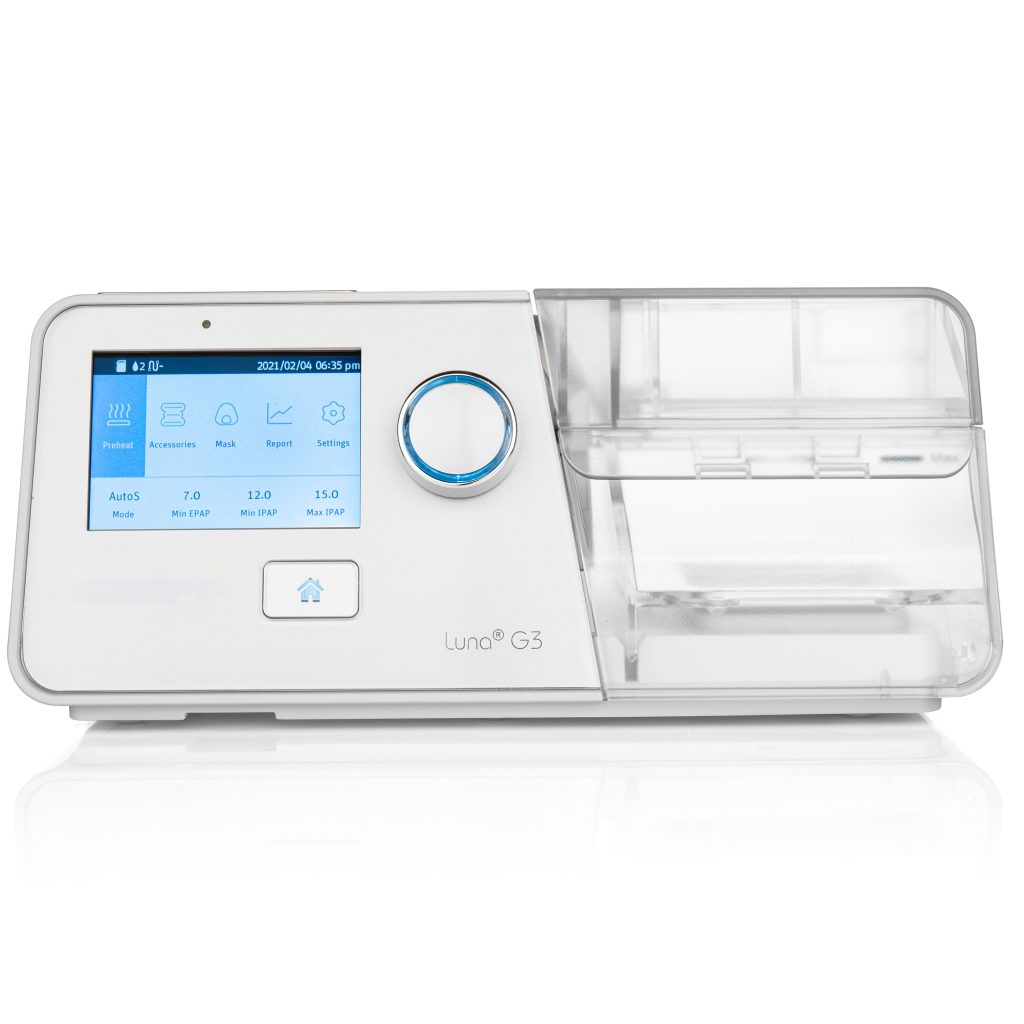

G3 Bilevel ST 30Vt Device
The G3 BPAP 30VT S/T is a BiLevel PAP device intended to provide non-invasive ventilation for patients with obstructive sleep apnea (OSA). It is intended for adult patients by prescription in the home or hospital/institutional environment. With its Target Tidal Volume function, excellent comfort features and effective performance, the G3 BPAP 30VT offers each patient personalized ventilation support. The device works in conjunction with patient’s breathing. If there is no inhalation for a certain period of time, the device will give a forced ventilation to ensure the minimum ventilation.
| Device Dimensions (L x W x H) | 10.4″ x 5.7″ x 4.5″ |
| Weight | 3.75 lbs |
| Humidification | Standard, Integrated |
| Heated Tubing | Standard |
| Connectivity | Integrated Cellular Modem QR Code, SD Card, WIFI |
| SD Data Capacity | Minimum 12 months |
| Filters | Reusable or Disposable Filter |
| Mode of Operation | CPAP, S, T, S/T |
| Breaths Per Minute | 3-40 in 1 bpm increments |
| Rise Time | 1 to 4 |
| Ramp Time | 0 to 60 min (increment is 5 min) |
| Inspiration Time | 0.1 to 3 seconds (increment is 0.1 second) |
| Ventilation Pressure | -1 |
| Pressure Range CPAP Work Mode | 4.0 ～ 20.0 cmH20 |
| Pressure Range Work Mode S, AutoS, T, S/T | IPAP: 4.0 ～ 30.0 cmH20; EPAP: 4.0 ～ 25.0 cmH20; |
| Sound pressure level dBA | < 26 dB, when the device is working at the pressur |
| Sound power level dBA | < 34 dB, when the device is working at the pressur |
- Efficiencies in Therapy with S/T Mode
- Inspiratory/ Expiratory Sensitivity
- Target Tidal Volume Function
- Leak Compensation
- Inspiratory Time Control
- Innovative PUSH Water Chamber for ease of use
- Pre-Heat Feature
- Integrated Heated Tubing with Intelligent Auto Humidity Control
